HAND-GUARDS SETUP INSTRUCTION
Before you begin: Read and understand the instructions before starting any work. Ensure that all parts are ready and that you have all the tools required for assembly.
Note: ANTHER EUROPE is not responsible for any damage caused by incorrect assembly. ANTHER EUROPE recommends that all original parts be assembled by authorized ANTHER EUROPE dealers. Before assembly, park the vehicle on a flat surface, place the transmission gear in the park position (P), and then turn off the ignition switch.
APPLICABLE TO MODELS: A650/800/1000

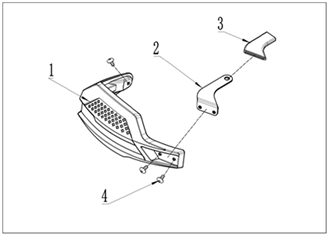

PARTS LIST:
|
S/N |
PART NAME |
PART NUMBER |
Qty |
|
1 |
Hand-guard |
LEFT: 17005160080 |
1 |
|
RIGHT: 17005160090 |
1 |
||
|
2 |
Hand-guard Mounting Plate |
LEFT: 17005160030 |
1 |
|
RIGHT: 17005160040 |
1 |
||
|
3 |
Hand-guard Mounting Plate Sleeve |
LEFT: 17005160290 |
1 |
|
RIGHT: 17005160300 |
1 |
||
|
4 |
Hexagon Head Screw M6x12 |
03414060124 |
3 |
TOOL LIST:
|
ITEM |
NAME |
Q-ty |
|
1 |
Air Gun |
1 |
|
2 |
Hexagon Wrench T30 |
1 |
STEPS:
1. Place the hand-guard mounting plate sleeve onto the hand-guard mounting plate.
2. Place the hand-guard mounting plate in the installation position and secure it using two M6x12 hexagon head screws.
3. Remove the rearview mirror.
4. Place the hand-guard into the installation position and screw in the M612 black hexagon head screw (at hole A).
5. Tighten the rearview mirror, and the installation is complete.
TIGHTENING TORQUES:
|
GRADE |
TORQUE |
|||||
|
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
|
|
4.6 |
4-5 |
10-12 |
20-25 |
30-45 |
55-70 |
80-110 |
|
5.6 |
5-7 |
12-15 |
25-32 |
45-55 |
70-90 |
110-140 |
|
6.8 |
7-9 |
17-23 |
33-45 |
58-78 |
93-124 |
145-193 |
|
8.8 |
9-12 |
22-30 |
45-59 |
78-104 |
124-165 |
193-257 |
|
10.9 |
13-16 |
30-36 |
65-78 |
110-130 |
180-201 |
280-330 |
|
12.9 |
16-21 |
38-51 |
75-100 |
131-175 |
209-278 |
326-434 |
